The Lesion Matching tool is designed to automatically detect and match lesions from similar images taken at different times. DermEngine's algorithms will automatically detect and match pairs of lesions. To edit the system's matching results, such as manually matching, changing the status of, or deleting pairs, follow the instructions below:
To learn how to perform manual mapping, click here.
To learn how to add Total Body Images to a patient profile, click here.

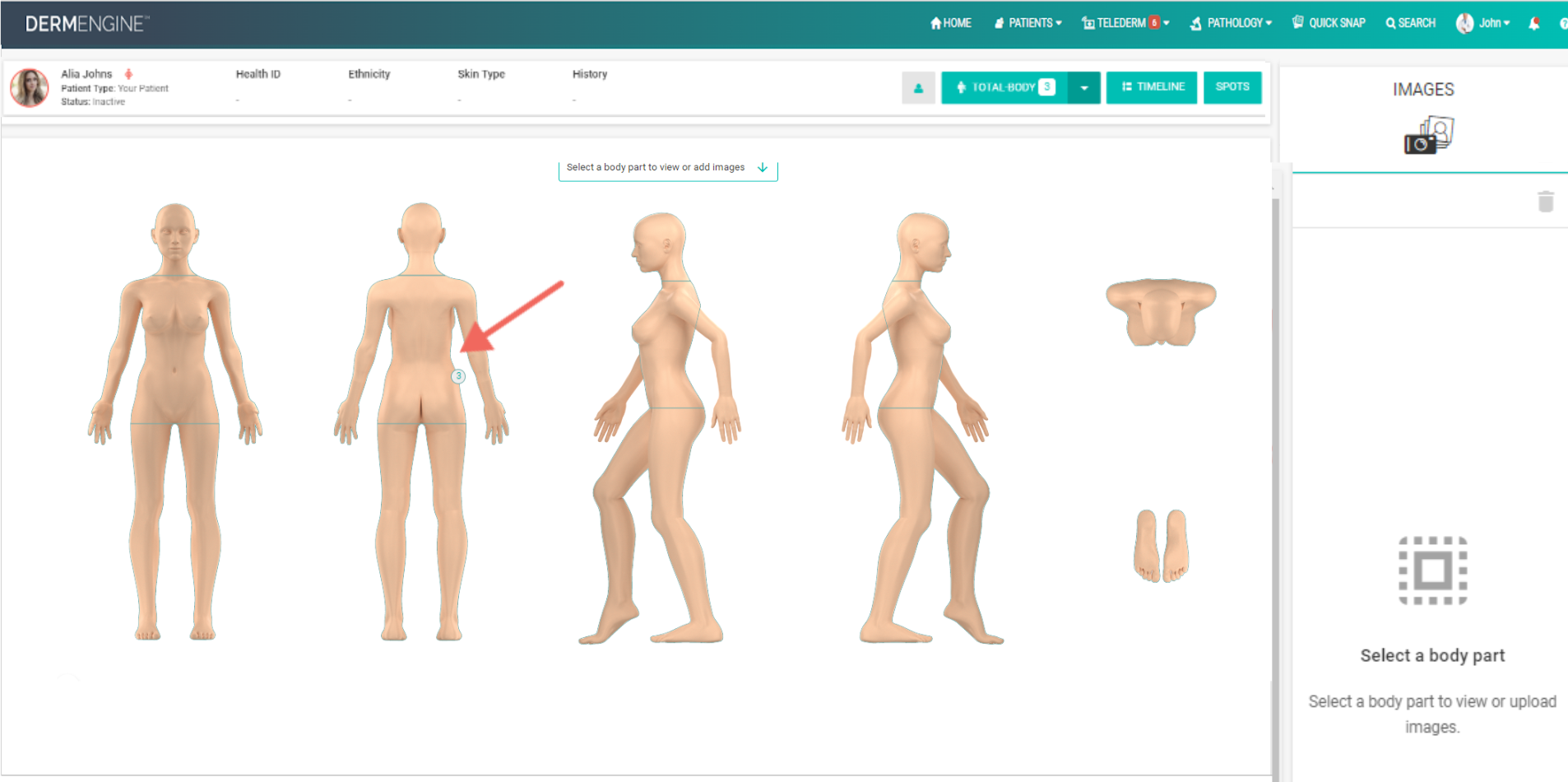

- Access your patient’s total body photography profile, then click the desired body part.

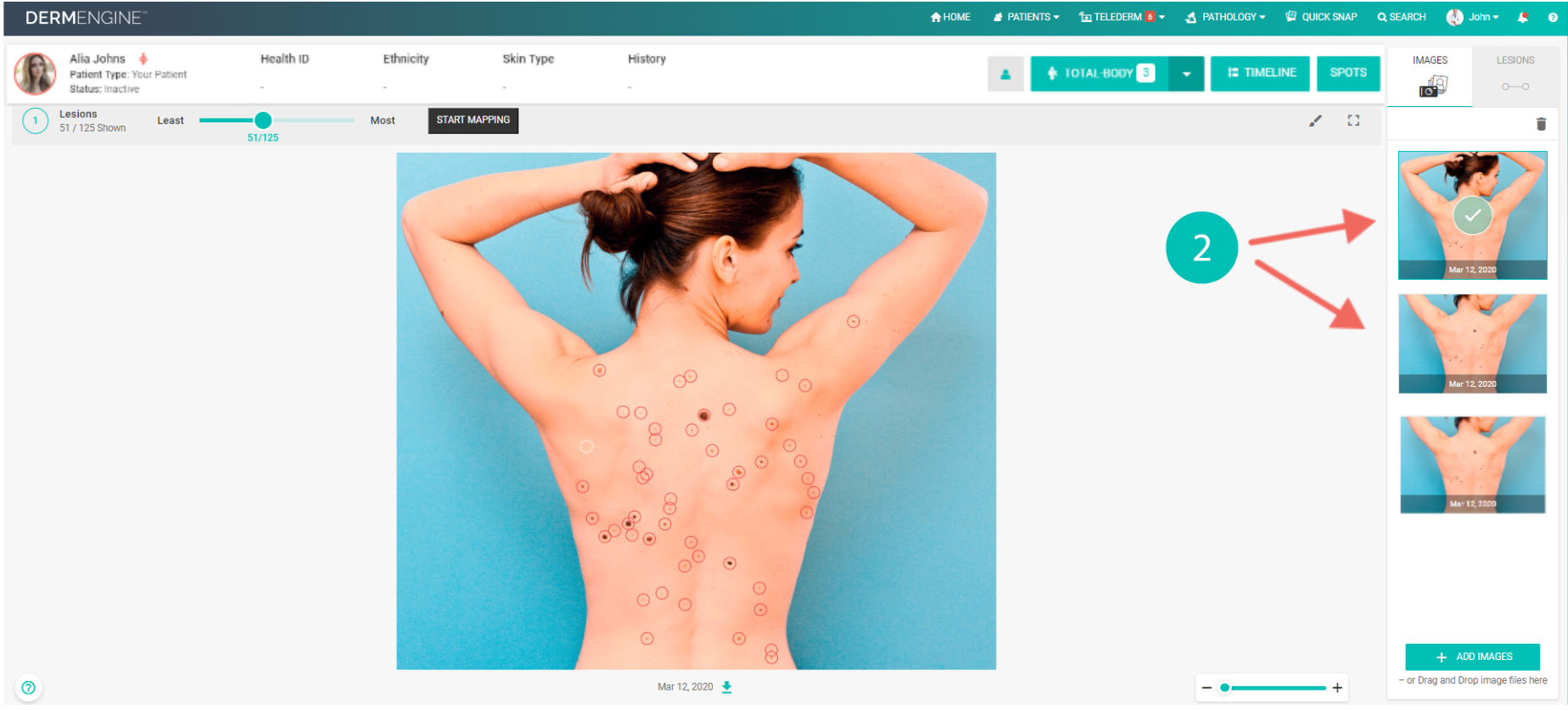

- Select the images you would like to compare.

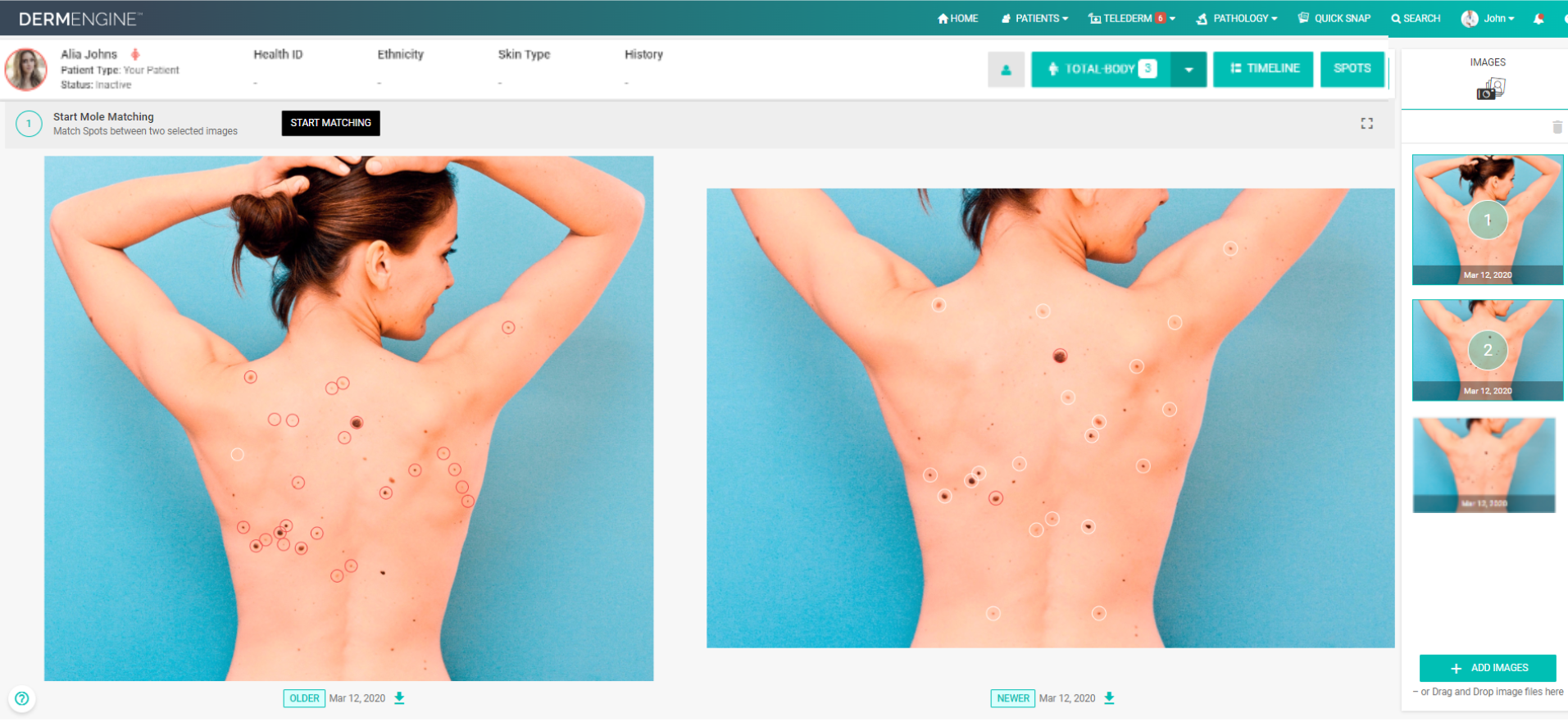

- The system will automatically start detecting and matching lesions. Please wait a moment, as it may take time to process this request depending on the number of spots on the patient. Learn to manually map lesions here.
- You may want to learn how to edit the system's lesion-matching results, such as creating a new pair, modifying a changed pair, and deleting an insignificant pair.
New Pair
- Click on a new lesion you would like to match on the left then its corresponding pair in the second image.

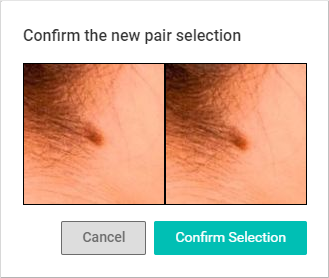

- Confirm that you would like this pair to be matched.
- Your new pair will be labeled as “Manually Created” on the right sidebar. Based on your new match, DermEngine’s algorithms will automatically work to match any new corresponding spots it identifies between the two images.
Pair Changed

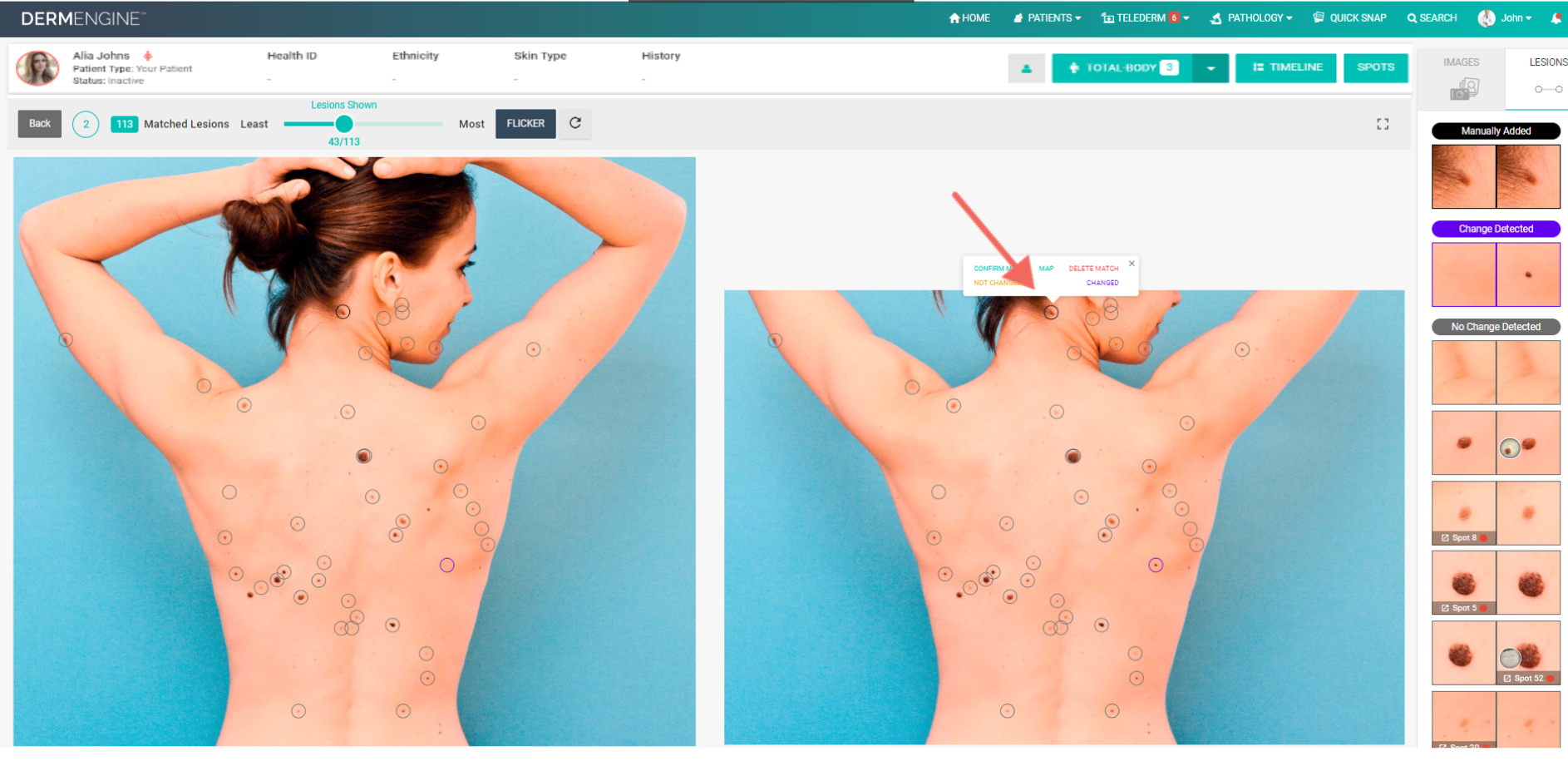

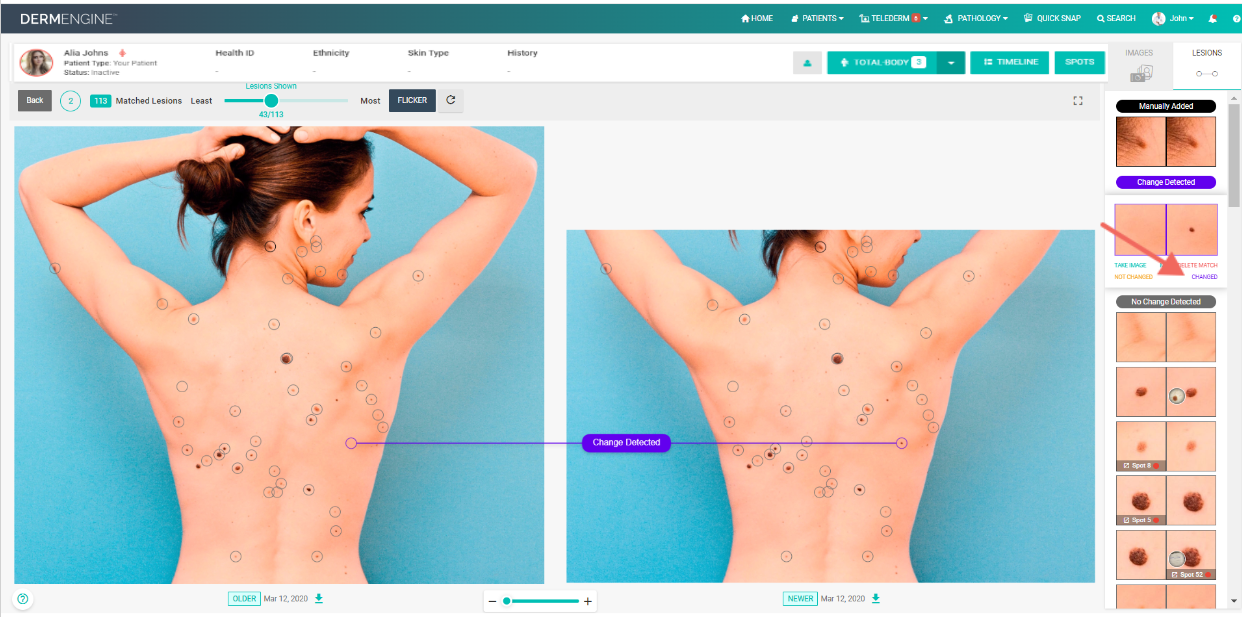

- Select the spot which you would like to mark as changed. Click the
and then click 'Changed'. - The newly labeled spot will be moved to the top of the image carousel on the right.
Delete A Pair

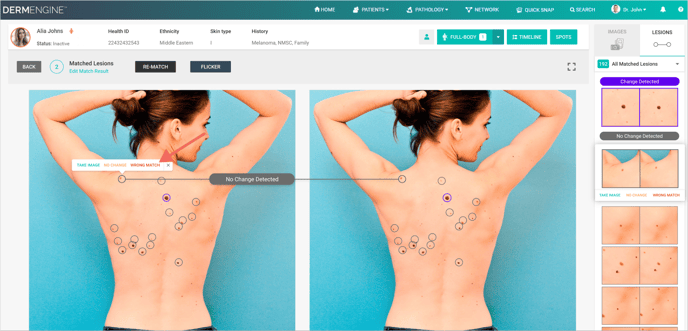

- To delete a pair, click that lesion and select “wrong match”.
Learn more about DermEngine's total body photography comparison tools and workflow here.
